Seven Segments (Anod)

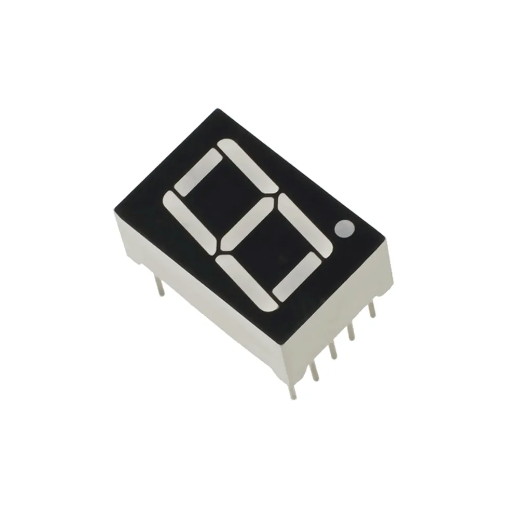

Seven Segments Anode Display Module (0.56 Inch)

The Seven Segments Anode display module is a classic single-digit LED indicator designed for numerical output in digital circuits and microcontrollers. Built with a common anode configuration, all internal LED positive terminals share a central power pin, while individual segments (A through G plus decimal point) are illuminated by pulling their corresponding cathode pins LOW.

Key Features

• Common Anode Configuration: Shared positive supply pin simplifies driver control using active-low microcontroller signals or decoder ICs.

• High-Visibility LEDs: Emits bright red illumination for clear readout of numbers (0–9) and select hexadecimal characters.

• Compact 0.56-Inch Digit: Standard size providing optimal visibility while maintaining a small footprint on circuit boards.

• Breadboard Compatible: standard through-hole DIP pins allow easy insertion into solderless breadboards and IC sockets.

Technical Specifications

Applications

Widely used in digital clocks, electronic counters, voltage meters, scoreboards, temperature displays, and Arduino or microcontroller learning projects.
