Switch (ON)-OFF-(ON) 2-Sides Momentary 250VAC 16A 6Pins
EGP17
20
People watching this product now!
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description

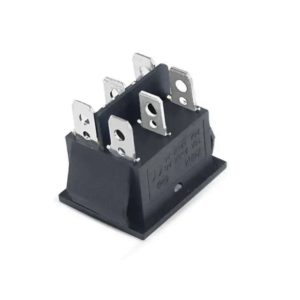

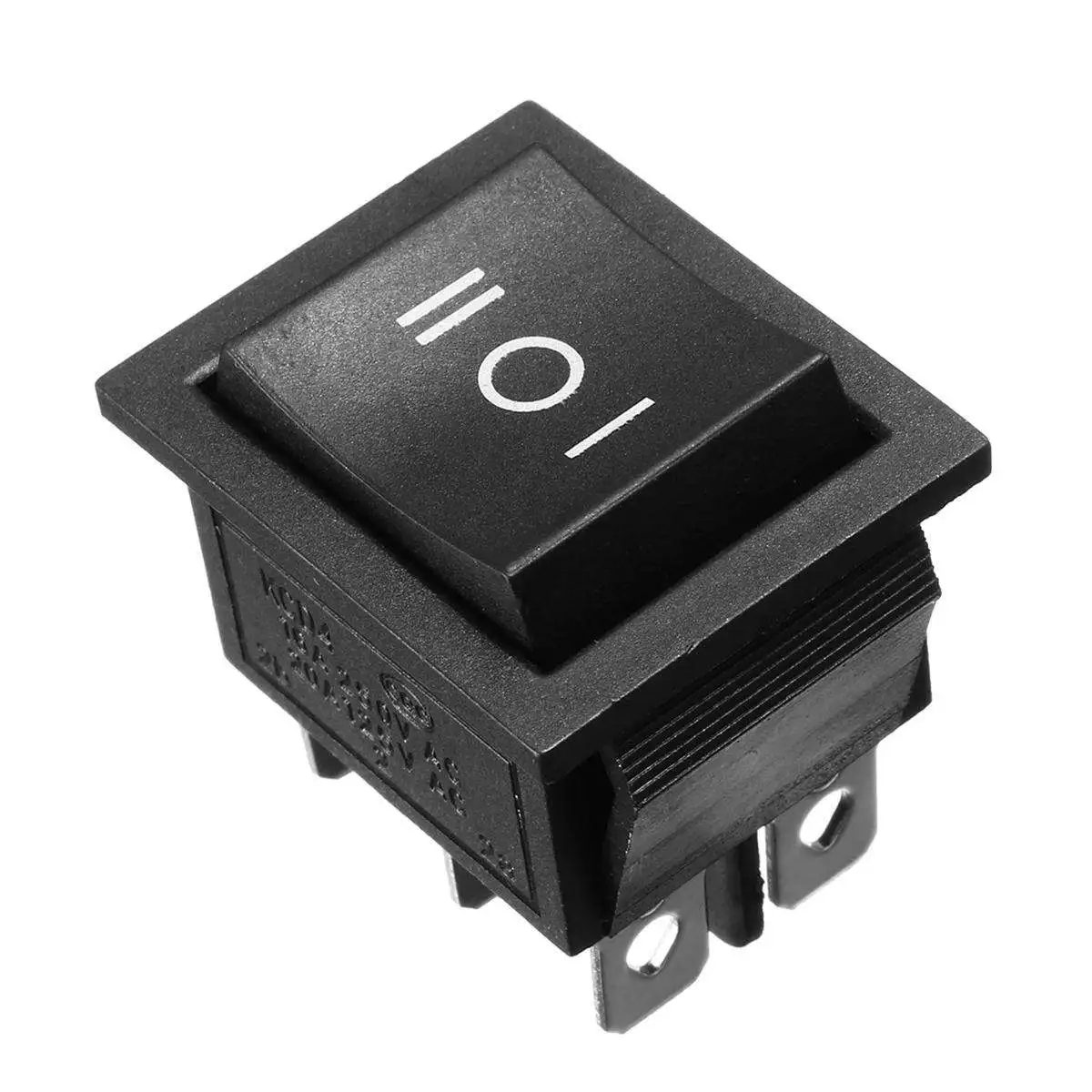

The KCD4 Dual-Momentary rocker switch features a stable center OFF position and two spring-return ON positions on either side, enabling momentary control in both directions. Its 6-pin DPDT configuration supports polarity reversal or dual-circuit control, and the robust design handles up to 16 A at 250 VAC. Compact and reliable, it’s suitable for panel or snap-in mounting and ensures consistent performance in demanding setups.
Features
- Dual-sided momentary ON positions with spring-return; center OFF latching.
- DPDT (double-pole double-throw) operation for polarity switching or dual load control.
- Rated for 16 A at 250 VAC (also supports 20 A at 125 VAC).
- Low contact resistance (≤ 50 mΩ) and high insulation resistance (≥ 100 MΩ).
- Dielectric strength up to 1,500 VAC and operational up to 10,000 cycles.
- Compact form factor (~26 × 22 mm mounting) with easy snap-in panel installation.
