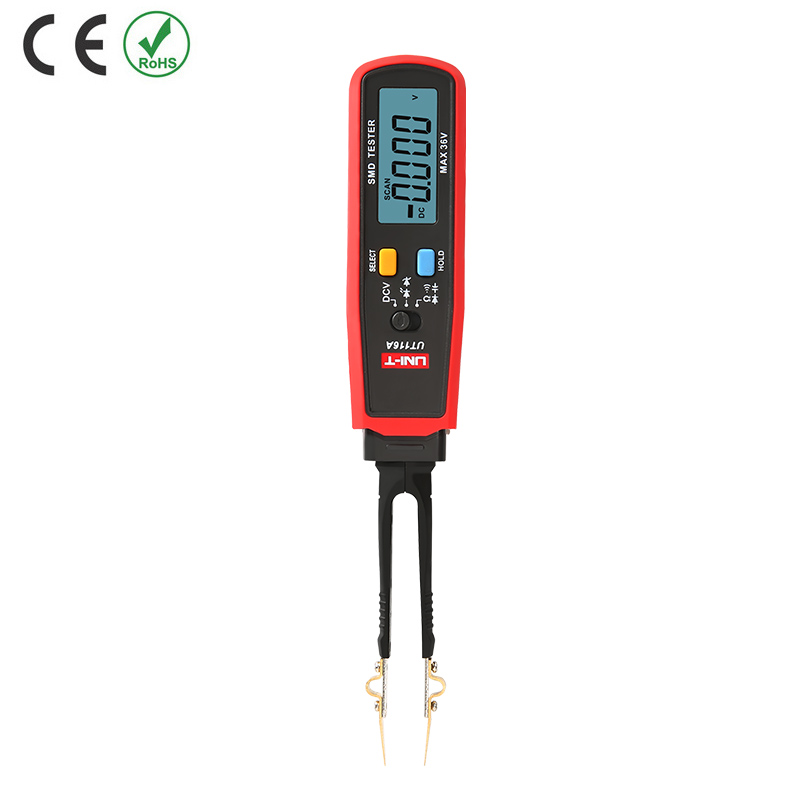

UNI-T UT116A SMD Tester

UT116 series SMD tester is a miniaturized and integrated utility model measuring instrument, which can automatically identify components such as resistance, capacitance, diode, etc., with LED, voltage regulator, DCV, on-off and battery power measurement functions. SMD resistance, capacitance, and diode (RCD) parameter measurement is a good helper for electronics factories and electronics maintenance.

• 36V DC voltage measurement.
• Zener diode polarity test.
• Resistance, capacitance (UT116A: up to 30mF), continuity, diode measurement.
• The pen can be rotated by 180, which is convenient for reading and diode/LED.

Specifications:

Specifications	UT116A
Display count:	3000
Resistance:	30MΩ
Capacitance:	30mF
Diode test:	3V
LED/stabilivolt:	About 21V/1mA
Continuity test:	＜30Ω
DCV:	36V
Auto range:	√
Auto scan identification:	√
Auto power off:	√
General Characteristics
Power:	1.5V battery (R03) x 2
Display:	39mm x 20mm
Product Color:	Red and grey
Product net weight:	About 80g
Product size:	204mm x 33mm x 25mm

Applications:

LED measurement

Resistance measurement

Package Contents;

• 1x SMD Tester UT116A
• 2x Spare test clamps
• 1x Special test leads (set)
• 1x User manual (English)
