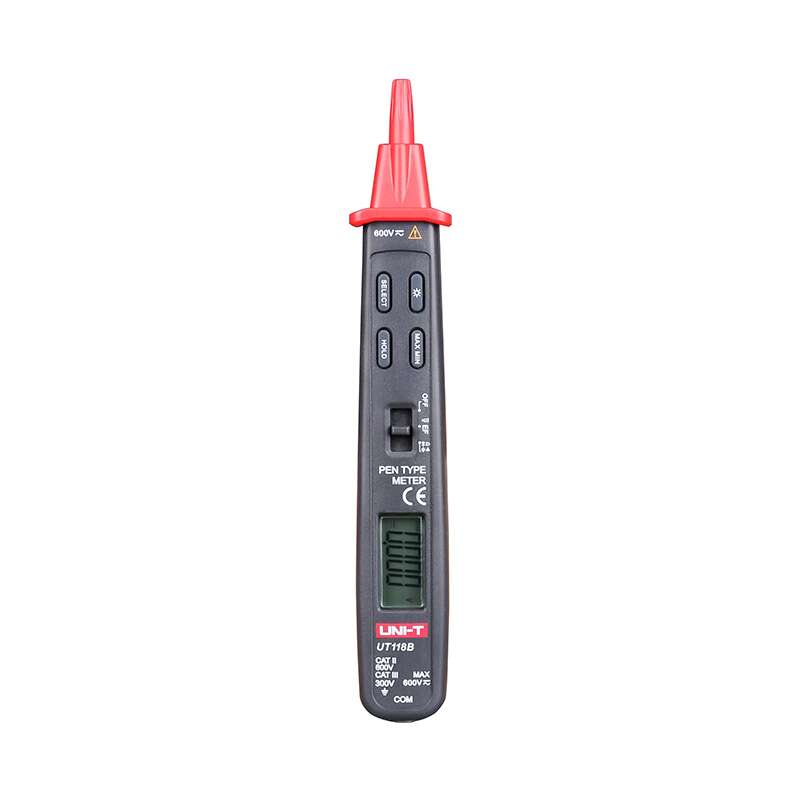

UNI-T UT118B Pen Type Digital Multimeter

UT118B pen-type multimeter is light and durable. This meter has a fast sampling rate of 4 times/s, which can quickly capture measurement readings. It is a cost-effective product customized for home appliance repair and DIYers.

Features:

• Display count: 3000
• Auto SCAN and range identify the mode
• Data hold, auto power off, low battery indication
• MAX/MIN modes
• LCD backlight
• Non-contact voltage detection

Specifications:

Specifications	Range (SCAN Mode)	Range (AUTO Mode)	UT118B
DC voltage (V)	300V	300V	±(1%+3)
AC Voltage (V)	300V	300V	±(1%+4)
Resistance (Ω)	3MΩ	30MΩ	±(1%+3)
Capacitance (F)	300μF	3mF	±(3%+5)
Features
Display count			3000
Auto range			√
EF function			√
Diode			√
Auto power off	Around 10 minutes		√
Continuity buzzer			√
Low battery indication			√
Data hold			√
MAX/MIN			√
LCD backlight			√
Input impedance for DCV	≥10MΩ		√
General Characteristics
Power	3V battery (CR2032)
Display	28mm x 14mm
Product color	Red and grey
Product net weight	90g
Product size	20mm x 27mm x 182mm

Applications:

DC Voltage Measurement

AC Voltage Measurement
